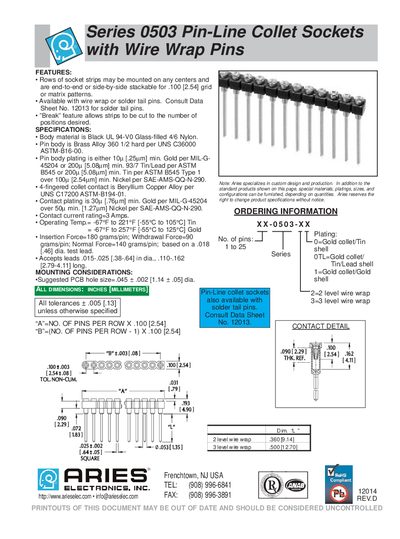

This document describes the features and characteristics of the Series 0503 Pin-Line Collet Sockets with Wire Wrap Pins produced by Aries. The product can be custom designed and produced according to specific requirements, including special materials, platings, sizes, and configurations. The product is stackable and can be mounted on any centers. It is available with wire wrap or solder tail pins. The specifications include body and pin material, plating, contact material, contact plating, contact current rating, and operating temperature.
The 0503 Series pin‑line collet sockets are offered with wire‑wrap or solder‑tail pins and can be mounted on any pitch, end‑to‑end or side‑by‑side, to create 0.100 in (2.54 mm) grid patterns. Rows of socket strips are cut to the desired number of positions using the “Break” feature. Optional plating choices include gold, tin/lead, tin or nickel, and the contacts are made of beryllium‑copper alloy.
Mounting considerations specify a PCB hole size of 0.045 in + 0.002 in and accept leads of 0.015‑0.025 in diameter. The contacts are rated for 3 A current, operate from –67 °F to 221 °F (tin) or –67 °F to 257 °F (gold), and have defined insertion, withdrawal and normal forces. Aries can provide custom materials, platings, sizes and configurations on request.
| Body material | Black UL 94-V0 Glass-filled 4/6 Nylon |
|---|---|
| Pin body material | Brass Alloy 360 1/2 hard (UNS C36000) |
| Pin plating options | 10 µm gold (MIL‑G‑45204), 200 µm tin/lead, 200 µm tin, 100 µm nickel |
| Contact material | Beryllium Copper Alloy (UNS C17200) |
| Contact plating | 30 µm gold (MIL‑G‑45204) or 50 µm nickel (SAE‑AMS‑QQ‑N‑290) |
| Contact current rating | 3 A |
| Operating temperature (Tin) | -67 °F to 221 °F (-55 °C to 105 °C) |
| Insertion force | 180 g per pin |
| Withdrawal force | 90 g per pin |
| Normal force | 140 g per pin |
| Acceptable lead diameter | 0.015‑0.025 in |
| Suggested PCB hole size | 0.045 in + 0.002 in |
The contacts are rated for 3 amps.
The body is made of black UL‑94V0 glass‑filled 4/6 nylon.
Pins can be plated with 10 µm gold, 200 µm tin/lead, 200 µm tin, or 100 µm nickel.
A hole size of 0.045 in + 0.002 in is recommended.
