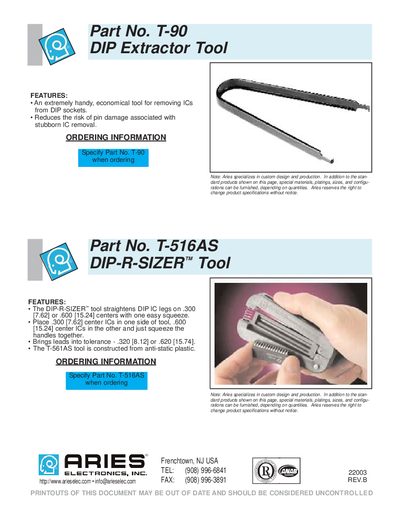

T-90 is a DIP extractor tool produced by Aries, which can be used to remove ICs from DIP sockets.
The Aries T-90 DIP Extractor Tool is an economical hand‑tool designed to remove integrated circuits from DIP sockets while minimizing pin damage. It can straighten DIP legs on .300 mm (7.62 mil) or .600 mm (15.24 mil) center spacings and bring leads into tolerance of .320 mm (8.12 mil) or .620 mm (15.74 mil).
Ordering information, contact details for Aries Electronics, Inc., and material specifications (anti‑static plastic) are provided for customers who wish to purchase the tool.
| Part Number | T-90 |
|---|---|
| Supported Center Spacing | .300 mm (7.62 mil) or .600 mm (15.24 mil) |
| Lead Tolerance | .320 mm (8.12 mil) or .620 mm (15.74 mil) |
| Material | Anti‑static plastic |
It is a handy, economical tool for removing ICs from DIP sockets and reduces the risk of pin damage.
Place .300 mm center ICs on one side and .600 mm center ICs on the other, then squeeze the handles to straighten the legs.
The tool is constructed from anti‑static plastic.
