ML-100 Mini-Link™ Miniature Jumpers are a type of connector product produced by Aries company. Its features are small size, can be used on 0.025 [.63] square pins, and can be connected from row to row or from pin to pin. Products come in two specifications with or without a handle, and each package contains 50.

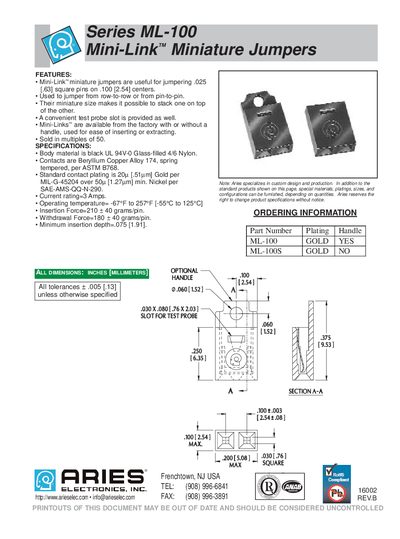

The ML-100 Mini-Link miniature jumpers are designed for jumpering .025" square pins on .100" (2.54 mm) centers, allowing row‑to‑row or pin‑to‑pin connections. Their compact size enables stacking, and a test‑probe slot is provided. Units are sold in multiples of 50 and can be ordered with or without a handle for easier insertion.
The specifications include a black UL 94V‑0 glass‑filled 4/6 nylon body, beryllium‑copper alloy contacts, 20 µm gold plating over a minimum of 50 µm nickel, a current rating of 3 A, operating temperature from –67°F to 257°F (‑55°C to 125°C), and defined insertion/withdrawal forces and dimensions. Contact information for Aries Electronics is provided for ordering and inquiries.
| Body material | Black UL 94V-0 glass‑filled 4/6 nylon |
|---|---|
| Contact material | Beryllium copper alloy 174, spring tempered |
| Operating temperature | -67°F to 257°F (-55°C to 125°C) |
| Current rating | 3 A |
| Insertion force | 210 ± 40 g per pin |
| Withdrawal force | 180 ± 40 g per pin |
| Minimum insertion depth | 0.075 in (1.91 mm) |
The current rating is 3 A.
They operate from –67°F to 257°F (‑55°C to 125°C).
The body is made of black UL 94V‑0 glass‑filled 4/6 nylon.
