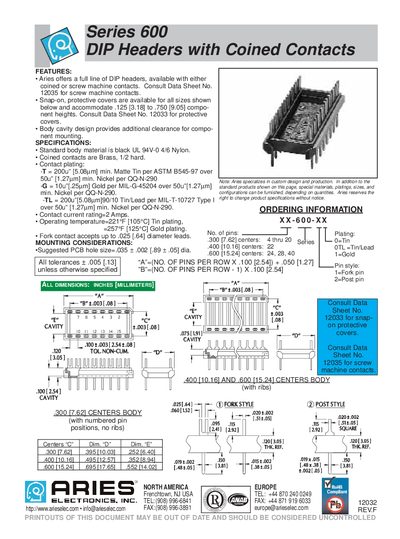

Aries 600 series DIP headers with coined contacts
Aries’ Series 600 DIP headers are available with coined contacts and optional screw‑machine contacts. The line includes snap‑on protective covers and a body cavity design that adds clearance for component mounting.
Key specifications include a black UL 94V‑0 4/6 Nylon body, brass 1/2‑hard coined contacts, and plating options of matte tin (200 µin), nickel (50 µin) and gold (10 µin). The headers support a 2 A contact current rating, operating temperatures up to 221 °F (tin) or 257 °F (gold), and recommended PCB hole size of 0.035 in + 0.002 in.
| Body material | black UL 94V-0 4/6 Nylon |
|---|---|
| Contact material | Brass, 1/2 hard |
| Tin plating thickness | 200 µin min |
| Nickel plating thickness | 50 µin min |
| Gold plating thickness | 10 µin min |
| Contact current rating | 2 Amps |
| Operating temperature (Tin) | 221 °F (105 °C) |
| Operating temperature (Gold) | 257 °F (125 °C) |
| Recommended PCB hole size | 0.035 + 0.002 in |
The contact current rating is 2 Amps.
Contacts can be plated with Matte Tin (200 µin min), Nickel (50 µin min), or Gold (10 µin min).
Yes, snap‑on protective covers are available for all sizes; see Data Sheet No. 12033.
