This document introduces Aries' custom design and production capabilities, as well as the specifications and features of two oscillator sockets they offer.

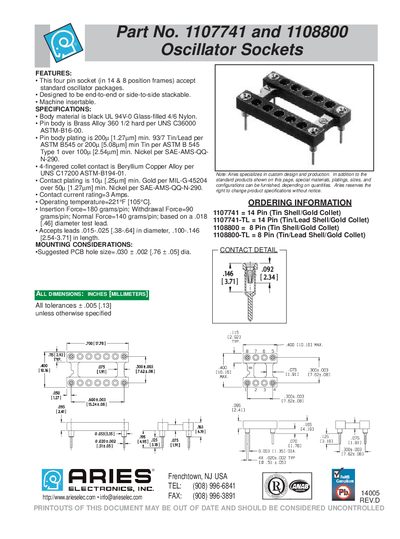

The Aries oscillator sockets are offered in 14‑pin (1107741) and 8‑pin (1108800) versions. They feature a four‑pin design that fits standard oscillator packages, can be stacked end‑to‑end or side‑to‑side, and are machine‑insertable.
Technical specifications include a black UL 94V‑0 glass‑filled nylon body, brass alloy pins, beryllium‑copper contacts with gold and nickel plating, a 3 A current rating, and an operating temperature up to 221 °F (105 °C). Ordering options cover tin/lead or tin‑only shell finishes, and recommended PCB hole size is .030 in + .002 in.
| Body material | black UL 94V‑0 glass‑filled 4/6 Nylon |
|---|---|
| Pin body material | Brass Alloy 360 1/2 hard (UNS C36000, ASTM‑B16‑00) |
| Pin body plating | 200 µin min. tin/lead (ASTM B545) or 200 µin min. tin (ASTM B545) with 100 µin min. nickel (SAE‑AMS‑QQ‑N‑290) |
| Contact material | Beryllium Copper Alloy (UNS E17200, ASTM‑B194‑01) |
| Contact plating | 10 µin min. gold (MIL‑G‑45204) over 50 µin min. nickel (SAE‑AMS‑QQ‑N‑290) |
| Contact current rating | 3 A |
| Operating temperature | 221 °F (105 °C) |
| Insertion force | 180 g per pin |
| Withdrawal force | 90 g per pin |
| Normal force | 140 g per pin |
| Acceptable lead diameter | 0.015‑0.025 in (0.38‑0.64 mm) |
| Recommended PCB hole size | 0.030 in + 0.002 in (0.76 mm + 0.05 mm) |
The contacts are rated for 3 amps.
The sockets can operate up to 221 °F (105 °C).
Insertion force is 180 g per pin and withdrawal force is 90 g per pin.
A hole size of 0.030 in plus 0.002 in is recommended.
