This document introduces the features and specifications of Aries' 650 series header covers.

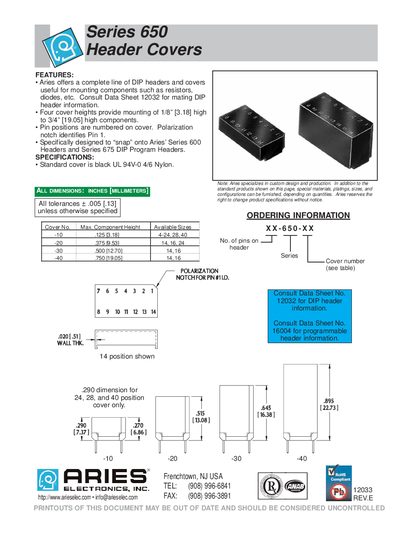

This guide presents Aries Series 650 header covers, describing their features such as four height options, numbered pin positions, and a polarization notch that marks Pin 1. The covers are designed to snap onto Aries Series 600 and Series 675 DIP program headers.
Technical details include the standard black UL 94V‑0 4/6 Nylon material, dimensional tolerances of +0.005 in (0.13 mm), and a range of component‑height capacities. Ordering information and custom‑design possibilities are also provided.
| Cover material | black UL 94V-0 4/6 Nylon |
|---|---|
| Cover height range | 1/8" (3.18 mm) to 3/4" (19.05 mm) |
| Dimensional tolerance | +0.005 in (0.13 mm) |
| Pin identification | Pin positions numbered on cover |
| Polarization notch | Identifies Pin 1 |
Four cover heights are offered, ranging from 1/8" (3.18 mm) to 3/4" (19.05 mm) high components.
Pin positions are numbered on the cover and a polarization notch marks Pin 1.
Aries offers custom designs, including special materials, platings, sizes, and configurations based on order quantity.
