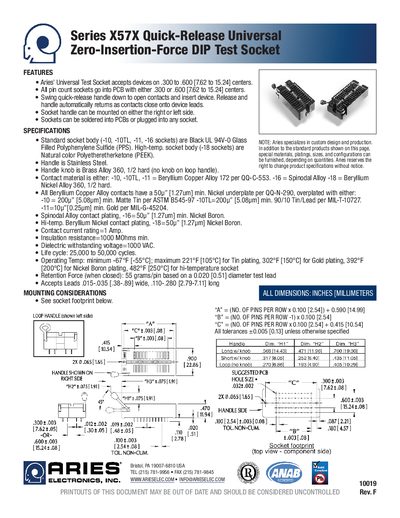

This document is about Aries' Universal Test Socket product introduction, which features the ability to accept devices with a center distance of .300 to .600. All pin count sockets can be used on PCBs with either a .300 or .600 center distance.
The Aries X57X series is a universal test socket that accepts devices with 0.300 to 0.600 inch (7.62‑15.24 mm) center spacing. It features a swing quick‑release handle, optional left or right mounting, and can be soldered into PCBs or plugged into any socket.
Technical specifications include a stainless‑steel handle, brass‑alloy knob, multiple contact materials (Beryllium Copper, Spinodal, Beryllium Nickel), 1 A contact current rating, 1000 MΩ insulation resistance, 1000 VAC dielectric rating, and a life cycle of 25‑50 k cycles. The socket operates from –67 °F up to 482 °F depending on plating, and is available in 24‑48 pin configurations with standard and high‑temp body materials.
| Center spacing | 0.300 to 0.600 in (7.62‑15.24 mm) |
|---|---|
| Handle material | Stainless steel |
| Handle knob material | Brass alloy 360, 1/2 hard |
| Contact current rating | 1 A |
| Insulation resistance | ≥ 1000 MΩ |
| Dielectric withstanding voltage | 1000 VAC |
| Life cycle | 25 000‑50 000 cycles |
| Retention force (closed) | 55 g per pin |
| Lead dimensions accepted | Width .015‑.035 in, Length .110‑.280 in |
| Socket body material (high‑temp) | Natural‑color PEEK |
| Part number | XX‑X57X‑18 |
| Available pin counts | 24, 28, 32, 36, 40, 42, 44, 48 |
| Row‑to‑row spacing | 0.300 in (3‑pin) or 0.600 in (6‑pin) |
The contact current rating is 1 Amp.
The socket provides at least 1000 MΩ insulation resistance.
The series is offered in 24, 28, 32, 36, 40, 42, 44, and 48‑pin versions.
