介绍了Aries的通用测试插座的特点，包括中心距、插座类型、触点、插座本体、手柄和手柄旋钮等。

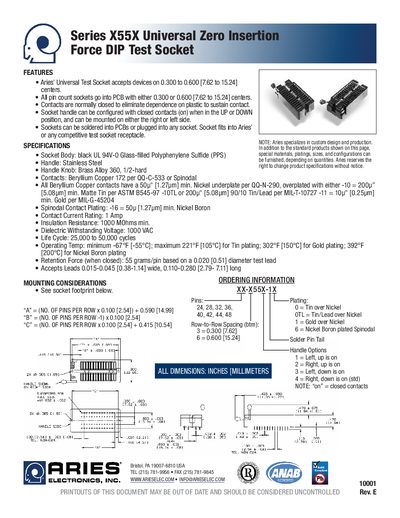

The Aries X55X Universal Zero Insertion Force (ZIF) DIP Test Socket is a versatile test socket that accepts devices with 0.300 to 0.600 inch center spacing. It offers closed‑contact operation, configurable handles, and can be soldered into PCBs or plugged into compatible receptacles.
The datasheet lists detailed specifications such as contact materials, plating options, electrical ratings, mechanical dimensions, and recommended mounting considerations, along with ordering information for custom configurations.
| Center spacing | 0.300 to 0.600 inches |
|---|---|
| Contact current rating | 1 Amp |
| Insulation resistance | 1000 MΩ min. |
| Dielectric withstanding voltage | 1000 VAC |
| Life cycle | 25,000 to 50,000 cycles |
| Retention force (closed) | 55 g per pin |
| Lead dimensions | 0.015‑0.045 in wide, 0.110‑0.280 in long |
| Socket body material | Black UL 94V‑0 glass‑filled PPS |
| Handle material | Stainless steel |
The socket is rated for a contact current of 1 Amp.
The insulation resistance is at least 1000 MΩ.
The socket is rated for 25,000 to 50,000 cycles.
