This product is a 6x30mm fuseholder with four different terminal types: C, D, T, and U. It can meet the needs of different scenarios. This product complies with safety category PC2 and has a rated current of 16A and a rated voltage of 250Vac.

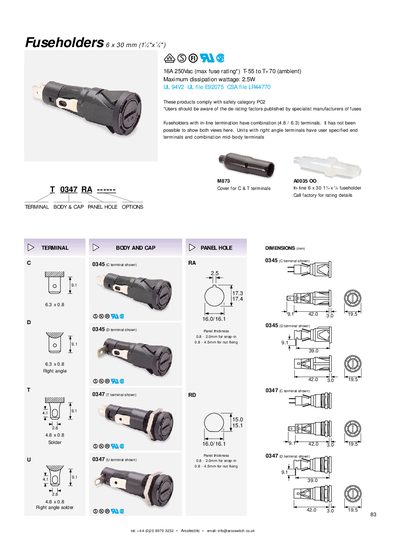

The handbook describes Arcolectric's 6 × 30 mm fuseholder series, offering a variety of terminal configurations such as right‑angle (6.3 × 0.8 mm) and solder (4.8 × 0.8 mm) options, as well as panel‑hole dimensions for snap‑in and nut‑fixing installations. Detailed drawings show body and cap options, including in‑line termination and combination terminals.
Safety information includes compliance with PC2 safety category, a maximum fuse rating of 16 A @ 250 V AC, and a maximum power dissipation of 2.5 W. Contact details are provided for further rating inquiries.
| Maximum fuse rating | 16 A @ 250 V AC |
|---|---|
| Maximum dissipation | 2.5 W |
| Safety category | PC2 |
| Panel thickness (snap‑in) | 0.8 – 2.0 mm |
| Right‑angle terminal size | 6.3 × 0.8 mm |
| Solder terminal size | 4.8 × 0.8 mm |
The maximum fuse rating is 16 A at 250 V AC.
It can dissipate up to 2.5 W of power.
The product complies with safety category PC2.
