This document provides the dimensions of 0717-C and 0717-1S, where 0717-C is a non-fused inlet and 0717-1S is a fused inlet with a switch. There are two types of 0717-1S: non-illuminated and illuminated.

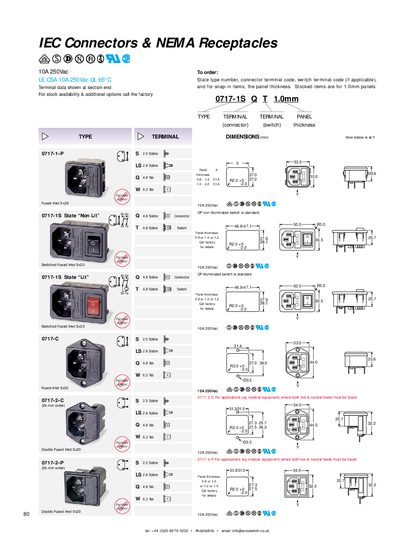

This handbook provides an overview of Arcolectric IEC connectors and NEMA receptacles. It lists the various product types (e.g., fused inlet, switched fused inlet) with their type numbers and terminal codes, and includes technical data such as current ratings and material specifications.
Ordering instructions are included, specifying the required information (type number, connector terminal code, switch terminal code, panel thickness) and contact details for the factory. Dimensional tables and panel thickness options are also provided.
| Current rating | 10A |
|---|---|
| Voltage rating | 250Vac |
| Connector material | Tin plated solid brass |
| Terminal plating | Silver plated |
| Panel thickness options | 0.8 of 1.0 or 1.2 |
| Solder terminal size | 4.8mm |
| Additional current rating | 20A 125Vac |
| Additional current rating | 16A 250Vac |
The IEC connectors are rated for 10 A at 250 Vac.
Provide the type number, connector terminal code, switch terminal code (if applicable), and the panel thickness when ordering.
Connectors are made of tin‑plated solid brass and the terminals are silver plated.
