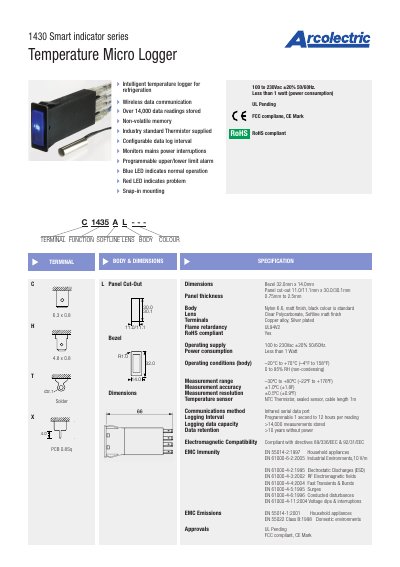

The 1430 Temperature Micro Logger is an intelligent temperature logger for refrigeration. It features wireless data communication, over 14,000 data readings stored, non-volatile memory, industry standard thermistor supplied, configurable data log interval, monitors mains power interruptions, programmable upper/lower limit alarm, blue LED indicates normal operation, red LED indicates problem, snap-in mounting.
The 1430 Smart indicator series temperature micro logger is an intelligent data‑logging device designed for refrigeration, freezer and chiller applications. It replaces standard neon indicators, offering blue LED status for normal temperatures and programmable red/blue alarms for out‑of‑range conditions. The logger records temperature at user‑configurable intervals (1 s to 12 h) and stores over 14,000 readings in non‑volatile memory, with data retention exceeding ten years without power.
The device operates from 100‑230 VAC, consumes less than 1 W, and communicates via an infrared serial data port to a PC software package for configuration and data export. It also monitors mains power interruptions and provides LED indications for power status. The manual covers specifications, installation, connections, software usage, and troubleshooting.
| Operating supply | 100 to 230 Vac ±20% 50/60 Hz |
|---|---|
| Power consumption | Less than 1 Watt |
| Operating temperature range (body) | –20 °C to +70 °C |
| Measurement range | –30 °C to +80 °C |
| Measurement accuracy | ±1.0 °C |
| Measurement resolution | ±0.5 °C |
| Temperature sensor | NTC Thermistor, sealed, 1 m cable |
| Logging interval | Programmable 1 s to 12 h |
| Data capacity | >14,000 measurements |
| Data retention | >10 years without power |
| Communication method | Infrared serial data port |
The device consumes less than 1 Watt of power.
It can store over 14,000 temperature measurements in its non‑volatile memory.
It measures temperatures from –30 °C to +80 °C.
When temperature exceeds the programmable limits, the LED changes from blue to red (or other configured colour).
