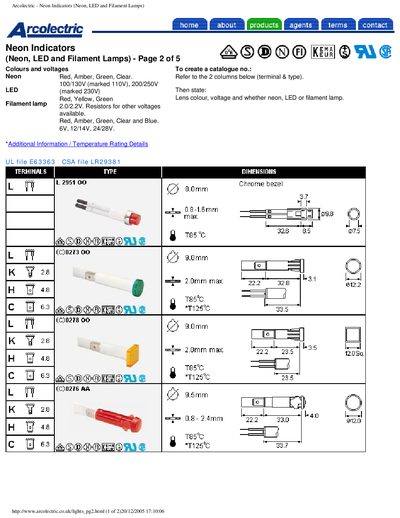

This PDF file introduces the specifications and features of Arcolectric's Neon Indicators (Neon, LED and Filament Lamps) products.
The leaflet describes Arcolectric's range of Neon Indicators, including neon, LED and filament lamps. It lists the available lamp colours – Neon Red, Amber, Green, Clear and Blue – and the voltage options such as 100/130 V (marked 110 V), 200/250 V, LED 230 V and filament lamp 9.9/2.9 V.
Technical details include temperature rating (up to T85 °C and T125 °C), UL file E63363, CSA file LR29381, and physical dimensions like chrome bezel size and a maximum 2.0 mm thickness. The document serves as a quick reference for selecting the appropriate indicator type and specifications.
| Neon Voltage Options | 100/130 V (marked 110 V), 200/250 V |
|---|---|
| LED Voltage | 230 V (marked) |
| Filament Lamp Voltage | 9.9/2.9 V |
| Additional Voltages | 6 V, 12/14 V, 24/28 V |
| UL Certification | E63363 |
| CSA Certification | LR29381 |
| Bezel Material | Chrome |
| Maximum Bezel Thickness | 2.0 mm |
Yes, they are listed under UL file E63363 and CSA file LR29381.
