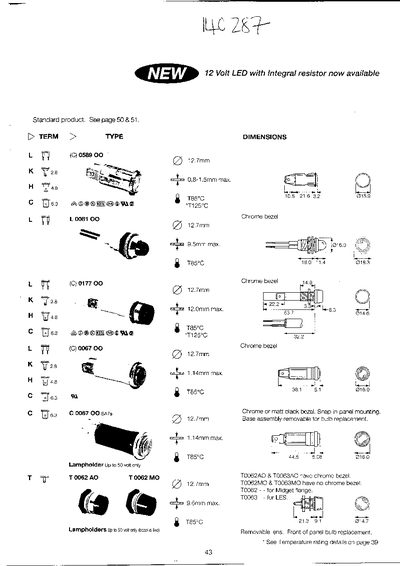

The Arcolectric C 0589 00 is a 12 V LED indicator with an integral resistor, available with red, yellow or green lenses and a chrome or matte‑black bezel. It snaps into a 12.7 mm panel hole and uses 6.3 mm terminals.
Technical data include a basic voltage of 2.0‑2.2 V (12 V versions with integral resistor), maximum continuous forward current of 35 mA, and a very long LED life. Standard brightness striking voltage is 65 Vac/90 Vdc, while high‑brightness types are rated at 95 Vac/135 Vdc. The device is rated for temperatures up to T125 °C.
| Basic voltage | 2.0‑2.2 V |
|---|---|
| Maximum continuous forward current | 35 mA |
| High brightness striking voltage | 95 Vac / 135 Vdc |
| LED life | Extremely long – not known to fail |
| Lens colors (LED) | Red, Yellow, Green |
The LED indicator is rated for a maximum continuous forward current of 35 mA.
The LED life is described as extremely long and not known to fail under test conditions.
The basic voltage is 2.0‑2.2 V, and versions with an integral resistor are available for 12 V operation.
