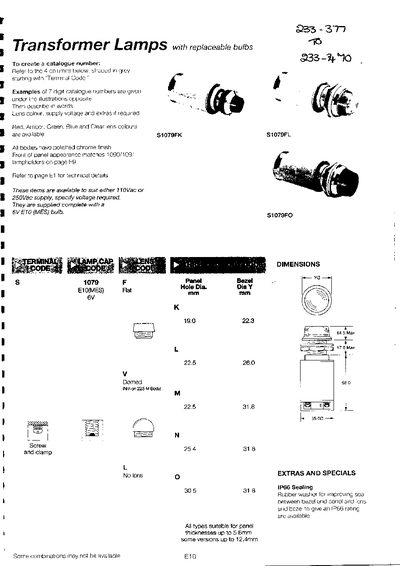

This leaflet lists the catalogue numbering system for ARCOLECTRIC 104672 transformer lamps and describes the available lens colours, supply voltages and optional extras. It shows how to create a 7‑digit catalogue number and specifies the standard 6V E10 (MES) bulb that is supplied with each unit.
Technical data include dimensions, compatible panel thicknesses (up to 5‑6 mm, some versions up to 12.4 mm), and optional IP66 sealing with a rubber washer. The document also notes the polished chrome finish and the front‑panel appearance matching other ARCOLECTRIC models.
| Lens colours | Red, Amber, Green, Blue, Clear |
|---|---|
| Supply voltage | 110Vac or 250Vac |
| Bulb type | 6V E10 (MES) bulb |
| Panel thickness compatibility | up to 5‑6 mm (some versions up to 12.4 mm) |
| IP rating (optional) | IP66 |
Red, Amber, Green, Blue and Clear lens colours are available.
They can be supplied for either 110Vac or 250Vac.
Yes, an IP66 sealing with a rubber washer is available as an extra.
