The document introduces Arcolectric's range of indicator lights, including neon lamps, LEDs, and filament lamps. Various colors and voltage options are available, along with a wide choice of bezel sizes and styles.

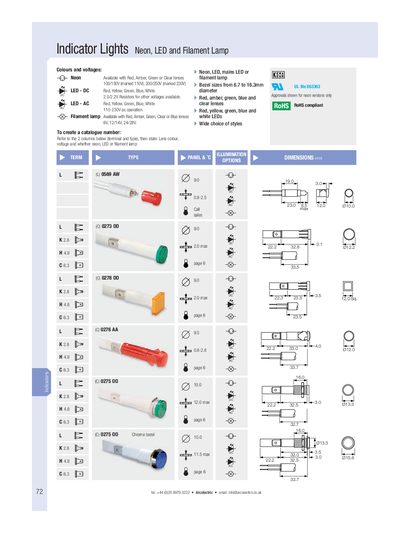

The catalogue presents Arcolectric's range of indicator lights, including neon, LED and filament lamp types. Each type is offered in multiple lens colours (red, amber, green, blue, white, clear) and supports various voltage ranges such as 12/14 V, 24/28 V and 110‑230 V AC. Bezel sizes are available from 6.7 mm to 16.3 mm.
To generate a catalogue number, refer to the two columns (terminal and type) and specify the lens colour, voltage and whether the unit is neon, LED or filament lamp. Contact details are provided for sales inquiries.
| Neon lens colours | Red, Amber, Green, Clear |
|---|---|
| LED (DC) lens colours | Red, Yellow, Green, Blue, White |
| LED (AC) lens colours | Red, Yellow, Green, Blue, White |
| Filament lamp lens colours | Red, Amber, Green, Clear, Blue |
| Bezel size range | 6.7 mm to 16.3 mm |
| Operating voltage (LED AC) | 110‑230 V AC |
| Resistor options | 2.0 V / 2.2 V |
Neon indicator lights are available with red, amber, green, or clear lenses.
LED lights are offered for DC operation in several colours and for AC operation from 110 V to 230 V.
Use the two columns (terminal and type) and state the lens colour, voltage and whether the unit is neon, LED or filament lamp.
Bezel sizes range from 6.7 mm to 16.3 mm.
