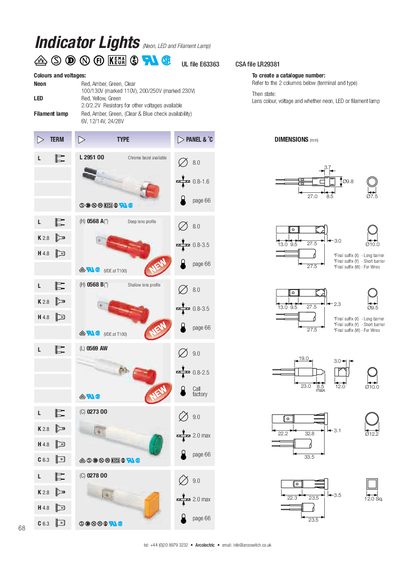

The document introduces Arcolectric's indicator lights, including neon lamps, LEDs, and filament lamps. The product offers a variety of colors and voltage options, and comes with different lens profiles and bezel designs. The document also provides information on the product's dimensions and technical specifications.
This leaflet provides a concise catalogue of Arcolectric's indicator lights, covering neon, LED, and filament lamp types. It details available colours, voltage markings, resistor options, lens profiles, and physical dimensions.
The document also includes guidance on creating catalogue numbers and lists the UL and CSA certification files applicable to the products.
| Neon colours | Red, Amber, Green, Clear |
|---|---|
| LED colours | Red, Yellow, Green |
| Neon voltage options | 100/130V (marked 110V), 200/250V (marked 230V) |
| Resistor values for other voltages | 2.0/2.2 V |
| Lens profile (deep) | (H) 0568 AC – Deep lens profile |
| Lens profile (shallow) | (H) 0568 BC – Shallow lens profile |
| Dimensions (mm) | 13.095 × 27.5 × 10.0 |
| UL certification | File E63363 |
| CSA certification | File LR29381 |
Neon indicator lights are offered in Red, Amber, Green, and Clear.
Neon lights are marked 110 V for 100/130 V and 230 V for 200/250 V.
Refer to the terminal and type columns, then state the lens colour, voltage and whether it is neon, LED or filament lamp.
The product is certified under UL file E63363 and CSA file LR29381.
