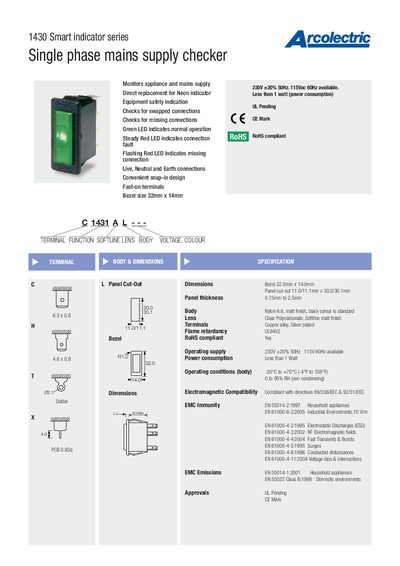

1430 Smart Indicator Series Single Phase Mains Supply Checker is a direct replacement for Neon indicator and is used for monitoring appliance and mains supply. It has a green LED indicating normal operation, steady red LED indicating connection fault, flashing red LED indicating missing connection and it features a convenient snap-in design and fast-on terminals.
The 1430 Smart Indicator series monitors appliance and mains supply connections, offering a direct replacement for neon indicators. It detects swapped, missing, or faulty connections and displays the status with green, steady red, or flashing red LEDs.
The device operates from 230 V ± 20 % 50 Hz or 115 V 60 Hz, consumes less than 1 W, and complies with UL, CE, and EMC directives. Its compact bezel measures 32 mm × 14 mm and is built from nylon 6.6 with a matte black finish, suitable for temperatures from –20 °C to +70 °C and humidity up to 95 % RH.
| Bezel size | 32 mm × 14 mm |
|---|---|
| Power consumption | < 1 W |
| Body material | Nylon 6.6, matte black |
| Operating temperature range | -20 °C to +70 °C |
| Maximum humidity | 0 % to 95 % RH (non‑condensing) |
Green LED indicates normal operation; a steady red LED indicates a connection fault; a flashing red LED indicates a missing connection.
The bezel measures 32 mm by 14 mm.
