The 8600 series rocker switches are miniature devices rated up to 16 A at 250 Vac, available in single‑pole, double‑pole, illuminated and non‑illuminated versions. They offer ON/OFF, C/O, biased, centre‑off, and momentary switching functions with push‑on, solder and PCB terminals.

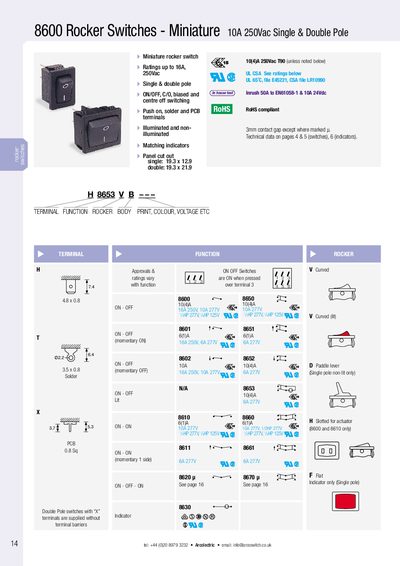

The leaflet lists panel cut‑out dimensions (single pole 19.3 × 12.9 mm, double pole 19.3 × 21.9 mm), terminal types, contact gap, inrush current, RoHS compliance and optional finishes. Detailed dimensions for various panel thicknesses and optional protective covers are also provided.
| Rated Current | 16 A |
|---|---|
| Rated Voltage | 250 Vac |
| Contact Gap | 3 mm |
| Inrush Current | 50 A (EN61058‑1) / 10 A @ 24 Vdc |
| RoHS Compliance | Yes |
| Panel Cut‑out (Single Pole) | 19.3 × 12.9 mm |
| Panel Cut‑out (Double Pole) | 19.3 × 21.9 mm |
| Terminal Type | "H" 4.8 mm push‑on |
The switches are rated up to 16 A at 250 Vac.
Yes, the switches are RoHS compliant.
The single‑pole panel cut‑out is 19.3 mm by 12.9 mm.
The standard contact gap is 3 mm unless otherwise marked.
