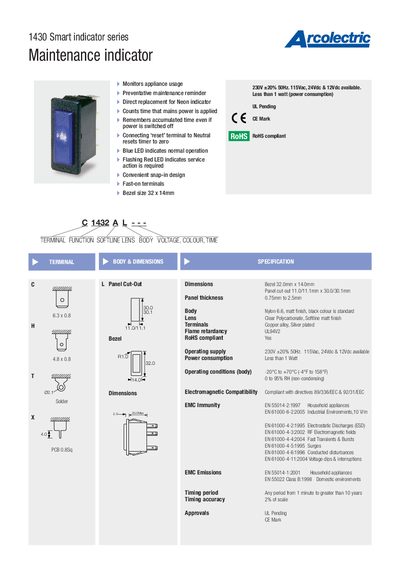

1430 Smart indicator series Maintenance indicator
The 1430 Smart Indicator series is a maintenance reminder device that monitors appliance usage and records accumulated run time, even when power is removed. It signals normal operation with a steady blue LED and alerts service needs with a flashing red LED.
Key features include a snap‑in design, fast‑on terminals, a compact 32 mm × 14 mm bezel, and selectable supply voltages (115 Vac, 230 Vac, 24 Vdc, 12 Vdc). The timer can be programmed from 1 minute up to 10 years, and the device complies with UL, CE, RoHS, and multiple EMC standards.
| Supply Voltage | 115Vac, 230Vac, 24Vdc, 12Vdc |
|---|---|
| Power Consumption | < 1 Watt |
| Operating Temperature | -20°C to +70°C |
| Relative Humidity | 0 to 95% RH (non‑condensing) |
| Bezel Size | 32.0 mm × 14.0 mm |
| Panel Cut‑out | 11.0/11.1 mm × 30.0/30.1 mm |
| LED Colours | Blue (normal), Red (service) |
| Timing Range | 1 minute to 10 years |
| EMC Compliance | EN 55014‑2:1997, EN 61000‑6‑2:2005, EN 61000‑4‑2:1995, etc. |
Link terminal 2 to terminal 3 while the indicator is powered to reset the timer to zero.
A steady blue LED shows normal operation, while a flashing red LED signals that service is required.
It can be powered from 115 Vac, 230 Vac, 24 Vdc, or 12 Vdc.
The device operates from –20 °C up to +70 °C.
