Specifications and parameters of 0600 series single-pole single-throw push button switches

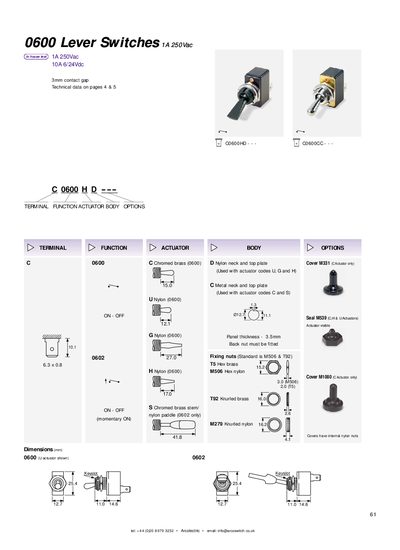

The 0600 Lever Switches are single‑ or double‑pole switches rated at 1 A 250 V AC, with a 3 mm contact gap. The handbook lists technical data, actuator types, and mounting options.
Various actuator materials (chromed brass, nylon) and cover options (M331, M1080) are described, along with fixing‑nut standards (M506, T92) and panel‑thickness requirements. Optional terminal barriers and seal parts are also detailed.
| Contact gap | 3 mm |
|---|---|
| Panel thickness | 3.5 mm |
| Dimensions (mm) | 11.0 × 14.6 |
| Standard fixing nuts | M506 & T92 |
A panel thickness of 3.5 mm is specified, with 4.0 mm when a backnut is used.
The standard fixing nuts are M506 and T92.
Yes, an optional terminal barrier (part M441) can be specified for double‑pole switches.
