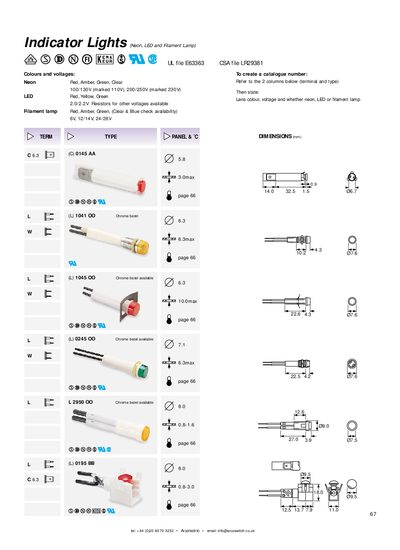

This document lists the specifications of Arcolectric's various indicator lights, including dimensions, colors, voltages, and types.
The handbook describes the range of indicator lights offered by Arcolectric, covering Neon, LED and filament lamp types. It lists the available lens colours, voltage options and resistor values for each type.
It also explains how to create a catalogue number by referencing the terminal and type columns, and provides physical dimensions for the various lens profiles and bezel options.
| Neon lamp colours | Red, Amber, Green, Clear |
|---|---|
| LED lamp colours | Red, Yellow, Green |
| Filament lamp colours | Red, Amber, Green, Clear, Blue (check availability) |
| Neon voltage options | 100/130 V (marked 110 V), 200/250 V (marked 230 V) |
| LED voltage options | 100/130 V (marked 110 V), 200/250 V (marked 230 V) |
| Resistor values for other voltages | 2.0 V / 2.2 V |
| Typical dimensions (mm) | 14.0 × 32.5 × 6.7 |
Neon indicator lights are available in Red, Amber, Green and Clear.
Both Neon and LED lights support 100/130 V (marked 110 V) and 200/250 V (marked 230 V).
Refer to the two columns for terminal and type, then state the lens colour, voltage and whether the lamp is Neon, LED or filament.
