The document introduces Arcolectric's indicator lights, which can be supplied with different light sources such as Neon, Fluorescent, Filament lamp or LED. The indicator lights are available with red, amber, green or clear lenses, and have different maximum striking voltages and brightness types. The product has a lifespan of 25000 hours and has anti-interference function. The materials used include nylon, chrome plated brass, polycarbonate, etc.

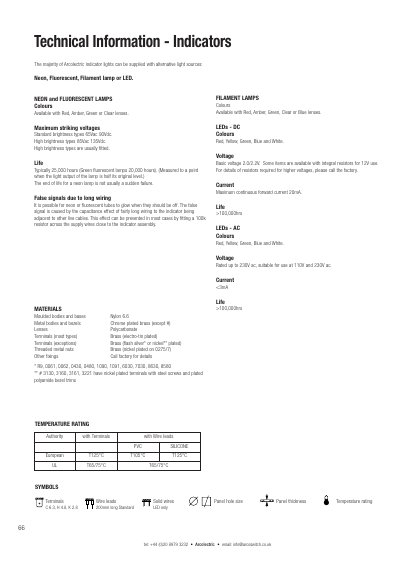

This document provides technical details for Arcolectric indicator lights used with switches. It describes the available lamp technologies (neon, fluorescent, filament, LED), colour options, striking voltages, life expectancy and electrical characteristics.
Materials, temperature ratings, dimensions, bezel sizes and compliance (RoHS) are also listed, along with guidance on preventing false signals caused by long wiring and recommended resistor values.
| Lamp types | Neon, Fluorescent, Filament lamp, LED |
|---|---|
| Available lens colours | Red, Amber, Green, Clear, Blue |
| Maximum striking voltage (standard brightness) | 65 Vac / 90 Vdc |
| Maximum striking voltage (high brightness) | 85 Vac / 135 Vdc |
| Typical lamp life | 25,000 h (green fluorescent 20,000 h) |
| LED forward current (DC) | 20 mA max |
| LED life (DC) | >100,000 h |
| LED basic voltage (DC) | 2.0 V / 2.2 V |
| LED voltage rating (AC) | Up to 230 V ac (suitable for 110 V and 230 V) |
| Body material | Nylon 6.6 (moulded), Chrome‑plated brass (metal) |
| Lens material | Polycarbonate |
| Bezel size range | 6.7 mm – 16.3 mm |
| RoHS compliance | Yes |
Typical life is about 25,000 hours, with green fluorescent lamps lasting around 20,000 hours.
