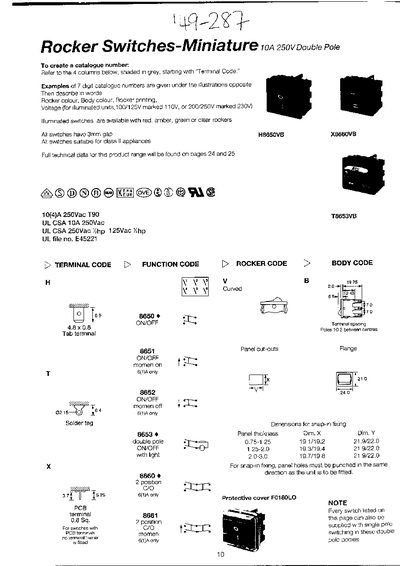

This leaflet explains how to create the seven‑digit catalogue numbers for the miniature rocker switches by using the four coded columns (Terminal Code, Function Code, Rocker Code, Body Code). It also lists the available rocker and body colours, printing options and the voltage markings for illuminated versions.
Technical data include a 3 mm gap between contacts, UL/CSA certifications, current ratings up to 12 A at 250 V AC, and dimensions for snap‑in panel mounting (thickness 0.75‑1.25 mm). Full detailed tables are referenced on pages 24‑25 of the full catalogue.
| Contact gap | 3 mm |
|---|---|
| Voltage rating | 250 V AC |
| Current rating (UL/CSA) | 10 A |
| Current rating (UL/CSA) – higher version | 12 A |
| Illuminated switch voltage marking | 100/125 V → 110 V, 200/250 V → 230 V |
| Panel thickness (snap‑in fixing) | 0.75‑1.25 mm |
Catalogue numbers are built from four columns – Terminal Code, Function Code, Rocker Code and Body Code – as shown in the shaded tables.
Illuminated switches use 100/125 V marked as 110 V, and 200/250 V marked as 230 V.
