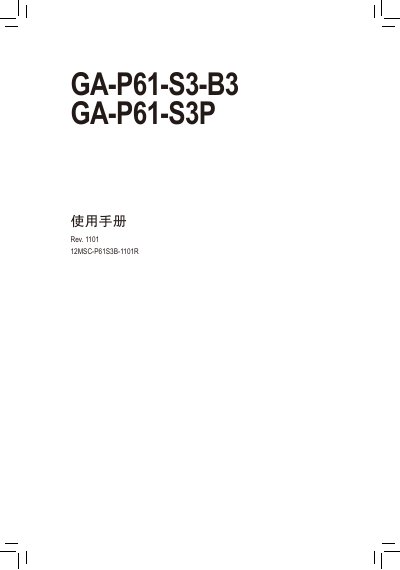

GA-P61-S3-B3 GA-P61-S3P User Manual, introduces the hardware installation, BIOS program settings, driver installation and other contents.
This manual guides users through installing and configuring the Gigabyte GA-P61-S3-B3/GA-P61-S3P ATX motherboard. It covers safety precautions, component installation, BIOS configuration, and driver setup.
The document includes a detailed motherboard layout, connector and jumper descriptions, full product specifications, and warranty information, helping both beginners and technicians to set up and maintain the system. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| Audio Codec | Realtek/VIA HD audio chip |
| LAN Interface | Atheros/Realtek GbE (10/100/1000 Mbit) |
| SATA Ports | 4 × SATA 3 Gb/s |
| USB Ports | Up to 8 × USB 2.0/1.1 |
It provides two DDR3 DIMM slots that support up to 16 GB of memory.
The board uses an LGA1155 socket for Intel processors.
There are four SATA 3 Gb/s connectors on the motherboard.
An Atheros/Realtek Gigabit Ethernet controller (10/100/1000 Mbit) is built in.
