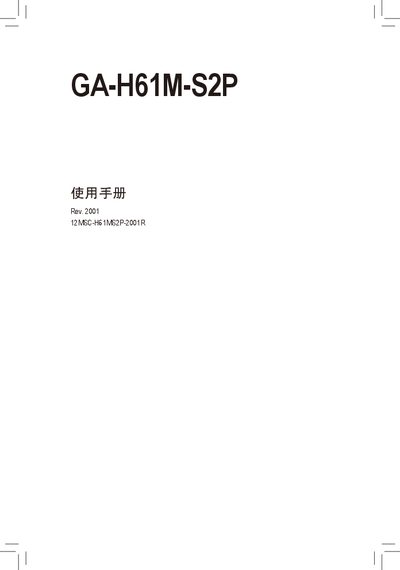

GA-H61M-S2P User Manual is the user manual of GA-H61M-S2P motherboard, mainly introduces the hardware installation and BIOS setting program of the motherboard
This manual covers the hardware installation process for the GA‑H61M‑S2P motherboard, including CPU, memory, and expansion card installation, as well as safety precautions and anti‑static handling. Detailed diagrams of the board layout and rear I/O connectors help users identify each socket and jumper.
It also explains BIOS settings, power‑management features, driver installation, and warranty information. The document includes specifications, connector pin‑outs, and troubleshooting tips for proper system integration. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speed | DDR3 1333/1066/800 MHz |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | Up to 8 × USB 2.0/1.1 (4 rear, 4 internal) |
| LAN | Realtek/Atheros GbE 10/100/1000 Mbit |
It has two DDR3 DIMM slots that together support up to 16 GB of memory.
The board supports Intel LGA1155 socket processors.
The motherboard provides up to eight USB 2.0/1.1 ports – four on the rear panel and four via internal headers.
A Realtek/Atheros Gigabit Ethernet controller supporting 10/100/1000 Mbit is built in.
