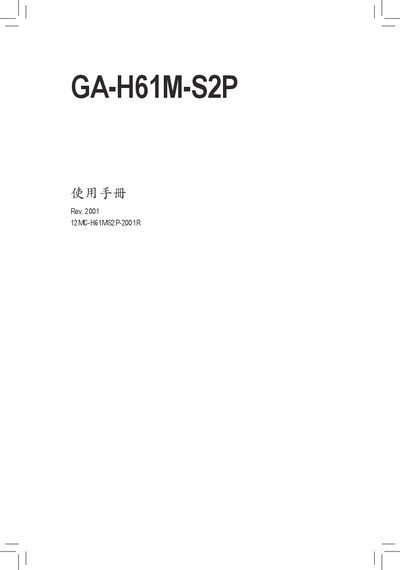

GA-H61M-S2P User Manual is the official user manual released by Gigabyte Technology for GA-H61M-S2P motherboard, which mainly introduces hardware installation and BIOS configuration settings.
This manual provides step‑by‑step hardware installation instructions, safety warnings and connector descriptions for the Gigabyte GA‑H61M‑S2P motherboard. It also covers BIOS configuration, power‑up procedures and troubleshooting tips.
Technical specifications, supported CPUs, memory types, expansion slots and warranty details are listed in dedicated sections, helping users set up and maintain the board correctly. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron (LGA1155) |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB total |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | 8 × USB 2.0 |
| PCI Express slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCI |
| Audio codec | Realtek AVIA HD audio with High Definition Audio support |
| Power connectors | 24‑pin ATX main power, 4‑pin ATX 12 V |
It uses an LGA1155 socket for Intel processors.
The board supports up to 16 GB of DDR3 memory across two DIMM slots.
Four SATA 3 Gb/s ports are available for storage devices.
