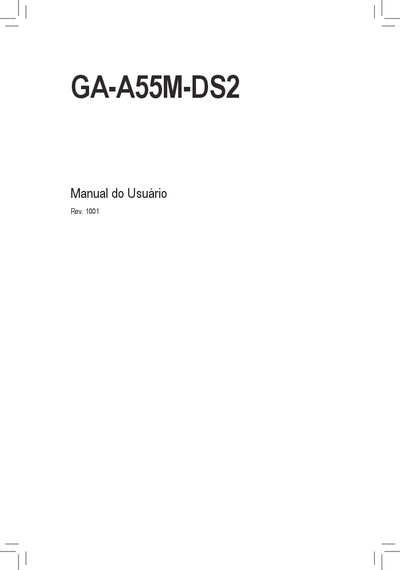

This document is the user manual of GA-A55M-DS2 motherboard, which introduces the functions and usage methods of the motherboard
This manual explains how to safely install the GA‑A55M‑DS2 motherboard, including ESD precautions, power‑off procedures, and connector handling. It also lists the contents of the box and provides a block diagram of the board.
The guide covers BIOS setup options, supported AMD A‑series and E2‑series APUs, memory configurations, graphics outputs, audio, LAN, storage, USB, and expansion slots. Regulatory declarations and warranty terms are included at the end of the document. This manual is written in Portuguese.
| CPU Socket | FM1 |
|---|---|
| Supported CPUs | AMD A‑series and AMD E2‑series APUs |
| Chipset | AMD ASS |
| Memory Slots | 2 DDR3 DIMM slots, up to 32 GB |
| Memory Speed | DDR3 1866/1600/1333/1066 MHz |
| Integrated Graphics Output | 1 D‑Sub, 1 DVI‑D (max 1920×1200) |
| Audio Codec | Realtek/VIA HD, 2/4/5.1/7.1 channel support |
| LAN | Realtek/Atheros GbE 10/100/1000 Mbit |
| PCI Express Slots | 1 × x16, 1 × x1 (PCIe 2.0 compliant) |
| SATA Ports | 4 SATA 3 Gb/s ports, RAID 0/1/10/JBOD |
| USB Ports | Up to 8 USB 2.0/1.1 ports |
Use an anti‑static wrist strap or touch a metal object, work on an anti‑static mat, and keep the ESD sticker intact.
The board supports AMD A‑series and AMD E2‑series APUs for the FM1 socket.
The BIOS includes Standard CMOS Features, Advanced BIOS Features, Integrated Peripherals, Power Management Setup, PC Health Status, and options to load default settings.
You can connect up to four SATA 3 Gb/s devices and use RAID 0, RAID 1, RAID 10, or JBOD.
