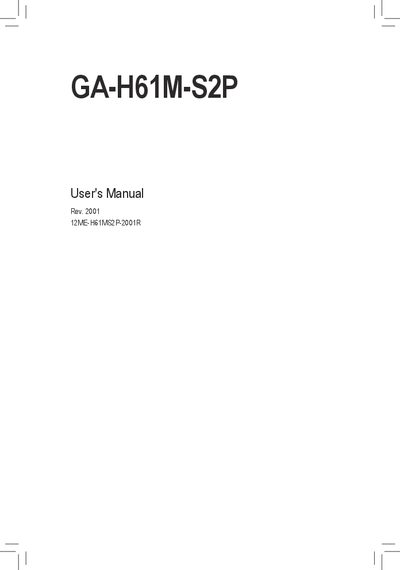

GA-H61M-S2P Motherboard User's Manual, introduces the hardware installation and BIOS settings of the motherboard
This manual guides users through installing and configuring the Gigabyte GA-H61M-S2P Micro ATX motherboard. It covers safety precautions, component installation, BIOS configuration, and driver setup.
The document includes a layout diagram, block diagram, detailed hardware installation steps (CPU, memory, expansion cards), back‑panel connector descriptions, BIOS feature explanations, and regulatory information.
| Chipset | Intel H61 Express |
|---|---|
| Memory Slots | 2 DDR3 DIMM sockets, up to 16 GB |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| Audio Codec | Realtek/VIA HD audio codec |
| LAN | Realtek/Atheros GbE 10/100/1000 Mbit |
| Expansion Slots | 1 PCIe x16, 1 PCIe x1, 2 PCI |
| SATA Ports | 4 SATA 3 Gb/s connectors |
| USB Ports | Up to 8 USB 2.0/1.1 (4 rear, 4 internal) |
| Form Factor | Micro ATX, 24.4 cm × 20 cm |
It provides up to 8 USB 2.0/1.1 ports—4 on the rear panel and 4 via internal headers.
The board is a Micro ATX form factor measuring 24.4 cm by 20 cm.
It uses an LGA1155 socket for Intel processors.
The board includes four SATA 3 Gb/s connectors.
