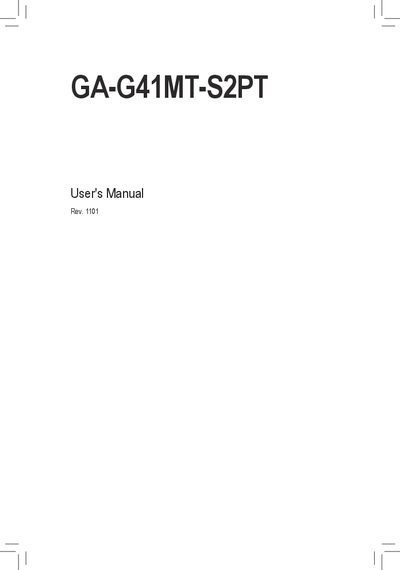

This is the user manual for GA-G41MT-S2PT motherboard, which introduces the hardware installation and BIOS setup of the motherboard
This manual covers hardware installation, BIOS configuration, and driver installation for the Gigabyte GA‑G41MT‑S2PT motherboard. It includes safety precautions, connector descriptions, and step‑by‑step guidance for assembling the system.
Key sections include product specifications, CPU and memory support, expansion slots, storage interfaces, and troubleshooting tips, helping users set up and maintain the board safely and efficiently.
| CPU support | Intel® Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo, Pentium, Celeron (LGA775) |
|---|---|
| Memory capacity | 2 DDR3 DIMM slots, up to 8 GB total |
| SATA connectors | 4 × SATA 3 Gb/s ports |
| USB ports | Up to 8 USB 2.0/1.1 ports |
| LAN controller | Realtek RTL8111E (10/100/1000 Mbit) |
It supports Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium and Celeron processors in the LGA775 package.
The board provides four SATA 3 Gb/s connectors for storage devices.
Up to 8 GB of DDR3 memory can be installed using the two DDR3 DIMM sockets.
