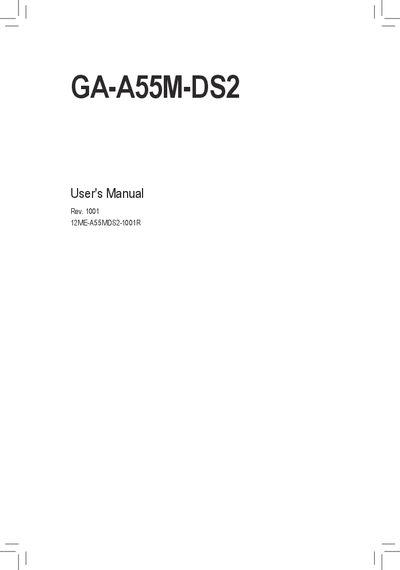

GA-A55M-DS2 User's Manual, introduces the features and characteristics of the product, hardware installation, technical specifications and other information
This manual covers everything needed to install and configure the GA‑A55M‑DS2 motherboard, including safety precautions, component installation, BIOS options, and driver setup. It also lists the technical specifications, connector layouts, and troubleshooting information.
The document is organized into sections such as Hardware Installation, BIOS Setup, Drivers Installation, Product Specifications, and an Appendix with additional configuration details. Detailed diagrams of the motherboard layout and block diagram help users identify connectors and components.
| CPU Socket | FM1 |
|---|---|
| Chipset | AMD A55 |
| Memory Capacity | 2 x DDR3 DIMM sockets, up to 32 GB |
| Supported DDR3 Speeds | 1866/1600/1333/1066 MHz |
| USB Ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 internal) |
| SATA Connectors | 4 x SATA 3 Gb/s connectors |
The board provides up to 8 USB 2.0/1.1 ports – four on the rear panel and four via internal headers.
It supports DDR3 memory modules at 1866, 1600, 1333, or 1066 MHz, up to a total of 32 GB.
The motherboard uses a Micro ATX form factor measuring 22.5 cm × 17.4 cm.
