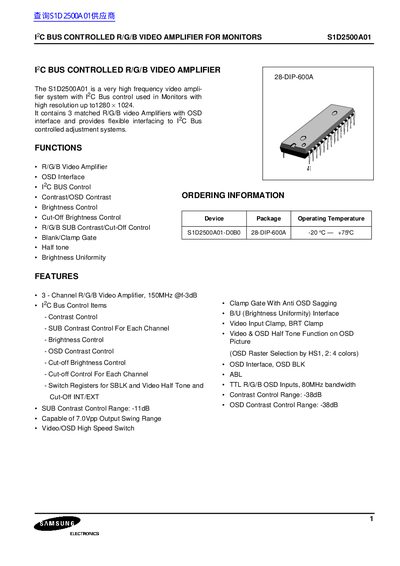

The S1D2500A01 is a high frequency video amplifier used in monitors with high resolution up to 1280 × 1024. It contains 3 matched R/G/B video amplifiers with OSD interface and provides flexible interfacing to I2C Bus controlled adjustment systems.
The S1D2500A01 is a high‑frequency three‑channel R/G/B video amplifier designed for monitors up to 1280 × 1024 resolution. It features I²C (°C‑Bus) control for contrast, brightness, cut‑off and OSD functions, and includes a brightness‑uniformity interface.
The document provides a block diagram, pin configuration and description, electrical specifications such as operating temperature, output swing, and bandwidth, as well as characteristic curves for video output and brightness uniformity.
| Channels | 3 (R/G/B) |
|---|---|
| Bandwidth | 150 MHz @‑3 dB |
| SUB Contrast Control Range | -11 dB |
| Contrast Control Range | -38 dB |
| OSD Contrast Control Range | -38 dB |
| Output Swing | 7.0 Vpp |
| OSD Input Bandwidth | 80 MHz |
| Package | 28‑DIP‑600A |
It has three channels (R, G, B) with a bandwidth of 150 MHz at –3 dB.
