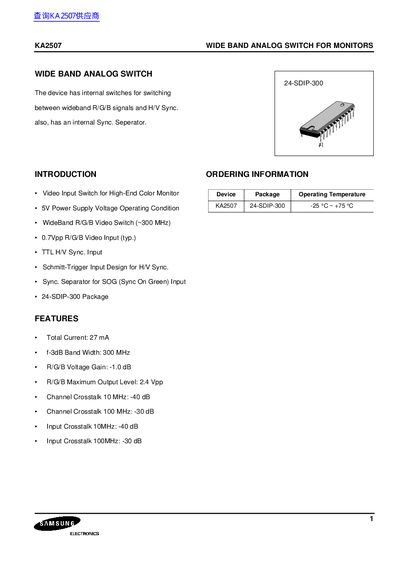

KA2507 is a wideband analog switch for monitors. It has internal switches for switching between wideband R/G/B signals and H/V Sync. also, has an internal Sync. Seperator.
The KA2507 is a wide‑band analog switch designed for high‑end color monitors, handling RGB video signals and horizontal/vertical sync with an internal sync separator. It operates from a 5 V supply and supports up to 300 MHz bandwidth.
The handbook includes an introduction, feature list, ordering information, block diagram, detailed pin configurations and descriptions, absolute maximum ratings, thermal and ESD parameters, electrical characteristics, and example application circuits.
| Total Current | 27 mA |
|---|---|
| -3 dB Bandwidth | 300 MHz |
| R/G/B Voltage Gain | -1.0 dB |
| R/G/B Maximum Output Level | 2.4 Vpp |
| Channel Crosstalk (10 MHz) | -40 dB |
| Channel Crosstalk (100 MHz) | -30 dB |
| Package | 24‑SDIP‑300 |
| Power Supply Voltage | 5 V |
| RGB Video Input Level (typ.) | 0.7 Vpp |
The device draws a total current of 27 mA.
It has a -3 dB bandwidth of 300 MHz.
The part is offered in a 24‑SDIP‑300 package.
