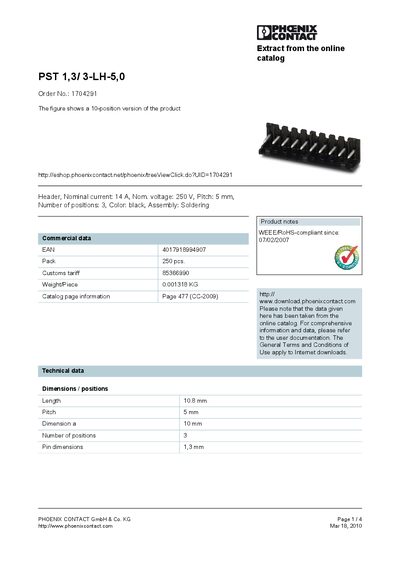

This document describes the features and characteristics of the product PST 1,3/ 3-LH-5,0 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, number of positions, color, etc.
The PST 1,3/3-LH-5,0 is a 3‑position, 5 mm pitch terminal block designed for soldered connections. It is rated for 14 A nominal current and 250 V nominal voltage, making it suitable for a range of industrial wiring applications.
The handbook provides detailed dimensions, electrical ratings, certification information (UL, CUL, EN‑VDE), and derating guidelines. It also includes drawing references, weight, and compliance data such as RoHS status.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Length | 10.8 mm |
| Dimension a | 10 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.001318 kg |
| RoHS compliance date | 07/02/2007 |
| Maximum load current | 13.5 A (depends on plug) |
| Derating factor | 0.8 |
The nominal current rating is 14 A.
The pitch is 5 mm.
Yes, it has been RoHS‑compliant since 07/02/2007.
