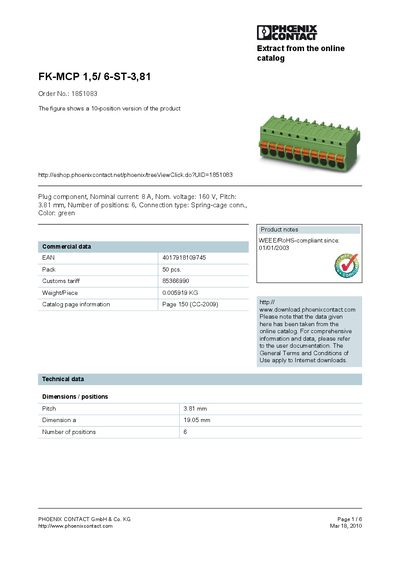

This document describes the product FK-MCP 1.5/6-ST-3.81 from Phoenix Contact GmbH & Co. KG, a plug component with a nominal current of 8A, nominal voltage of 160V, spring-cage connection type, and green color.
The FK-MCP 1,5/6-ST-3,81 is a green plug component terminal block with a 3.81 mm pitch, six positions, and a nominal current rating of 8 A at 160 V. It is supplied in packs of 50 pieces and complies with WEEE/RoHS regulations.
The sheet lists detailed technical data such as dimensions, weight, and material specifications, as well as certifications (CSA, CUL, UL, VDE‑PZI) and a range of accessories like marker cards and screwdriver tools. Additional related product variants are also referenced.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 6 |
| Color | green |
| Weight per piece | 0.005919 kg |
| Dimension a | 19.05 mm |
| Pack size | 50 pcs |
| Certifications | CSA, CUL, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 8 A.
It has six positions.
The pitch is 3.81 mm.
It is certified CSA, CUL, UL and VDE‑PZI among others.
