PHOENIX CONTACT PLH 16/ 2-15 is a PC terminal block with a rated current of 76 A, rated voltage of 1000 V, pitch of 15 mm, 2 positions, spring-cage connection type, assembly type of soldering, conductor/PCB connection direction of 0°, and green color.
The PLH 16/2-15 is a 2‑position terminal block from Phoenix Contact with a 15 mm pitch, spring‑cage connection, and a nominal current rating of 76 A at 1000 V. It is supplied in a green housing and is designed for solder‑on assembly.

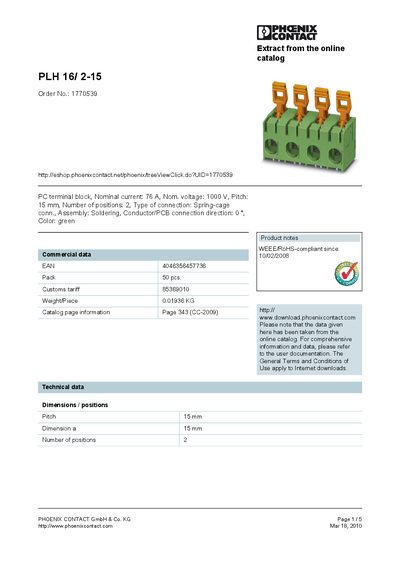

The handbook lists commercial data, technical data, pin dimensions, connection details, and drawing references. It also includes packaging information, weight, EAN code, and compliance notes (WEEE/RoHS). For full details, the online catalog can be consulted via the Phoenix Contact website.
| Nominal current | 76 A |
|---|---|
| Pitch | 15 mm |
| Number of positions | 2 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Color | Green |
| WEEE/RoHS compliance date | 10/02/2008 |
The nominal current is 76 A.
The pitch is 15 mm.
It has 2 positions.
The terminal block is green.
