MCV 1,5/ 8-GF-3,81 is a connector with 8A rated current, 160V rated voltage, 3.81mm pitch and green color, produced by PHOENIX CONTACT. It can be installed by soldering.
The MCV 1,5/8-GF-3,81 is an 8‑position, green‑colored terminal block with a 3.81 mm pitch, designed for soldering assembly. It is rated for 8 A nominal current and 160 V nominal voltage and complies with RoHS since 01/01/2003.

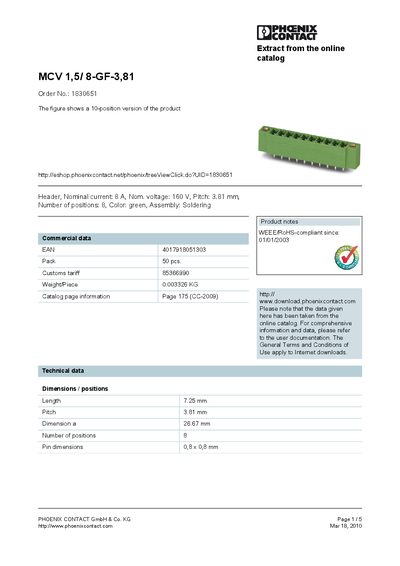

The handbook lists detailed dimensions, pin sizes, weight, and available accessories such as marker cards and various plug adapters. Certification marks (CB, CSA, CUL, UL, VDE‑PZI) are also provided.
| Nominal current | 8 A |
|---|---|
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Length | 7.25 mm |
| Dimension a | 26.67 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.003326 kg |
| Color | green |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It has 8 positions.
The pitch is 3.81 mm.
It carries CB, CSA, CUL, UL, and VDE‑PZI certifications.
