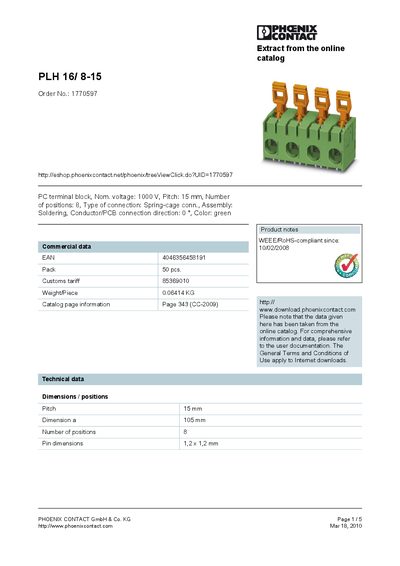

The PLH 16/8-15 is a compact PC terminal block from Phoenix Contact with a 15 mm pitch and eight positions. It is designed for soldering assembly and features a spring‑cage connection.
The leaflet lists technical data such as nominal voltage, dimensions, weight, and material specifications, and points to the full user documentation on the Phoenix Contact website for more detailed information.
| Pitch | 15 mm |
|---|---|
| Number of positions | 8 |
| Weight per piece | 0.06414 kg |
| EAN | 4046356458191 |
| Dimension a | 105 mm |
| Pin dimensions | 1.2 × 1.2 mm |
The terminal block has eight positions.
The pitch is 15 mm.
Refer to the user documentation on the Phoenix Contact website; the catalog page is 343 (CC‑2009).
