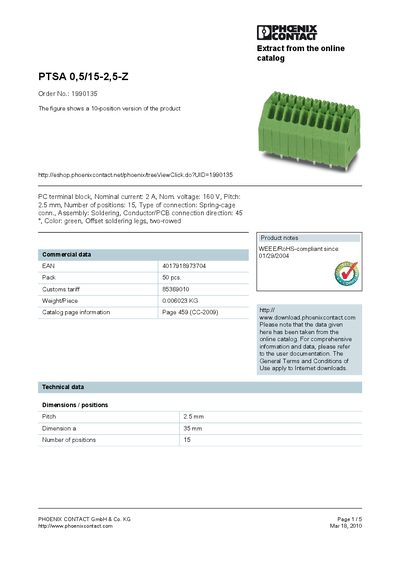

This document describes the features and characteristics of the PC terminal block product PTSA 0,5/15-2,5-Z produced by PHOENIX CONTACT GmbH & Co. KG, including rated current, rated voltage, type of connection, and assembly method.
The PTSA 0,5/15-2,5-Z is a terminal block from Phoenix Contact designed for 2 A nominal current and 160 V nominal voltage. It features a 2.5 mm pitch, 15 positions, and a spring‑cage connection suitable for soldered PCB mounting.
Technical data include a 45° conductor‑to‑PCB direction, green housing, and various surge voltage ratings up to 2.5 kV. The product complies with RoHS and is certified by CUL, UL, and VDE‑PZI.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 15 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB direction | 45° |
| Color | Green |
The terminal block is rated for a nominal current of 2 A.
It provides 15 positions.
The pitch is 2.5 mm.
