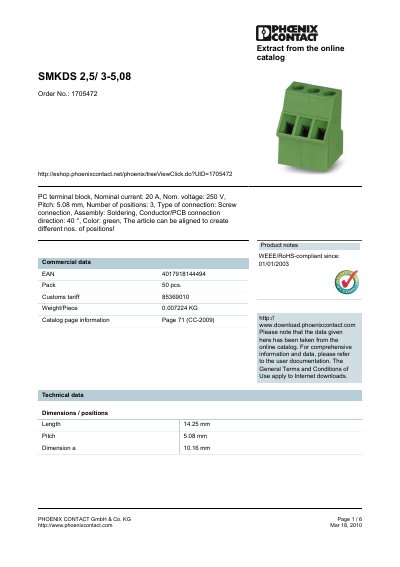

This product is a 3 position connector with a rated current of 20A and a rated voltage of 250V. It is manufactured by PHOENIX CONTACT and has the model number SMKDS 2,5/ 3-5,08.
The SMKDS 2,5/3-5,08 is a 5.08 mm pitch terminal block designed for industrial electrical connections. It supports a nominal current of 20 A and a nominal voltage of 250 V, with three positions per block.
Key technical data include an insulating material of group I, a rated surge voltage of 4 kV, and a tightening torque range of 0.5‑0.6 Nm. The datasheet also lists available accessories, certification approvals, and dimensional drawings for installation.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Insulating material | Group I |
| Rated surge voltage | 4 kV |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Certifications | CB, CCA, CSA, CUL, GOST, SEV, UL |
The terminal block is rated for a nominal current of 20 A.
The pitch of the terminals is 5.08 mm.
Each block provides three positions.
The recommended tightening torque is between 0.5 Nm and 0.6 Nm.
