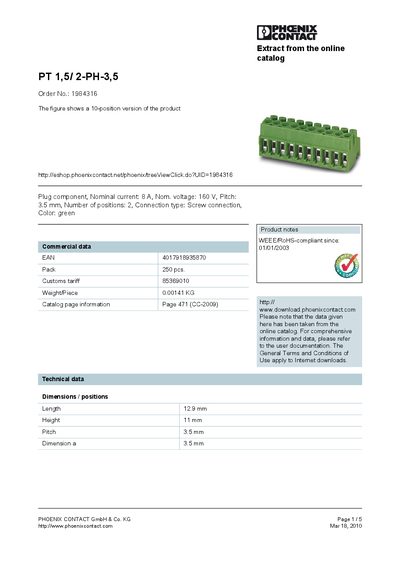

This document describes the features and characteristics of the product PT 1,5/2-PH-3,5 from PHOENIX CONTACT GmbH & Co. KG, including plug component, nominal current, nominal voltage, number of positions, and connection type.
The PT 1,5/2-PH-3,5 is a 2‑position screw‑type terminal block from Phoenix Contact. It is designed for wiring with a 3.5 mm pitch and is supplied in a green housing.
Key information includes nominal current of 8 A, nominal voltage of 160 V, compact dimensions (12.9 mm × 11 mm), and certifications such as CCA, CUL, SEV and UL. Detailed technical data, tightening torque values and accessory part numbers are provided in the sheet.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Length | 12.9 mm |
| Height | 11 mm |
| Weight per piece | 0.00141 kg |
| Certifications | CCA, CUL, SEV, UL |
The terminal block is rated for a nominal current of 8 A.
The pitch of the terminal block is 3.5 mm.
It is certified according to CCA, CUL, SEV and UL standards.
