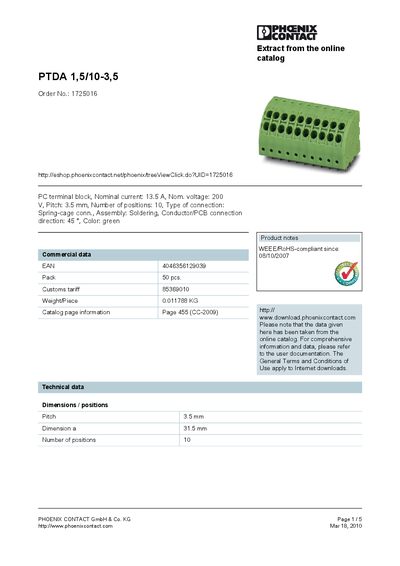

This document is about the product information of PC terminal blocks from PHOENIX CONTACT GmbH & Co. KG. The features of this terminal block include a nominal current of 13.5A, a nominal voltage of 200V, a pitch of 3.5mm, 10 positions, a spring-cage connection type, soldering assembly, a conductor/PCB connection direction of 45°, and a green color.
The PTDA 1,5/10-3,5 is a spring‑cage terminal block designed for 13.5 A nominal current and 200 V nominal voltage. It features a 3.5 mm pitch and ten positions, suitable for soldered PCB connections.
The handbook includes detailed technical specifications, dimensional drawings, derating diagrams, certification information (CUL, UL) and contact details for Phoenix Contact. It is intended for engineers and installers who need precise product data and connection guidelines.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 200 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
| Derating factor | 0.8 |
The nominal current rating is 13.5 A.
The pitch is 3.5 mm.
It has ten positions.
