MC 1,5/ 3-STF-3,5 is a 3-position terminal produced by PHOENIX CONTACT. Its rated current is 8A, rated voltage is 160V, connection type is screw connection, and color is green. It is packed in 50 pieces/bag
The MC 1,5/3-STF-3,5 is a green, screw‑connection terminal block with a 3.5 mm pitch, three positions, a nominal current of 8 A and a nominal voltage of 160 V. It is designed for easy wiring and is RoHS‑compliant.

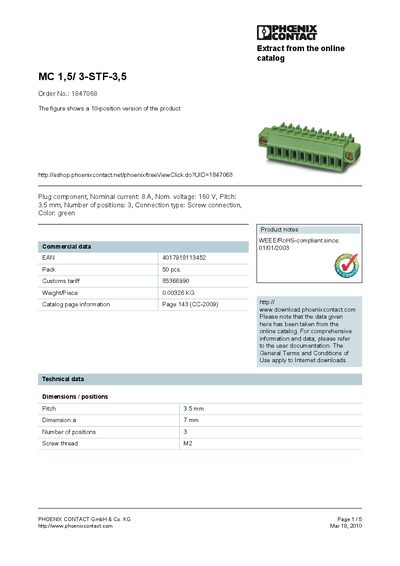

The leaflet lists detailed specifications such as dimensions (7 mm height, 3.5 mm pitch), tightening torque (0.22 Nm min, 0.25 Nm max), certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI), and accessories like marker cards and compatible screwdrivers. Ordering information and the manufacturer's contact details are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Weight per piece | 0.00326 KG |
| Dimension a | 7 mm |
| Certifications | CB, CSA, CUL, GOST, UL, VDE-PZI |
The nominal current rating is 8 A.
It has three positions.
The recommended tightening torque is 0.22 Nm minimum and 0.25 Nm maximum.
It is certified according to CB, CSA, CUL, GOST, UL and VDE‑PZI standards.
