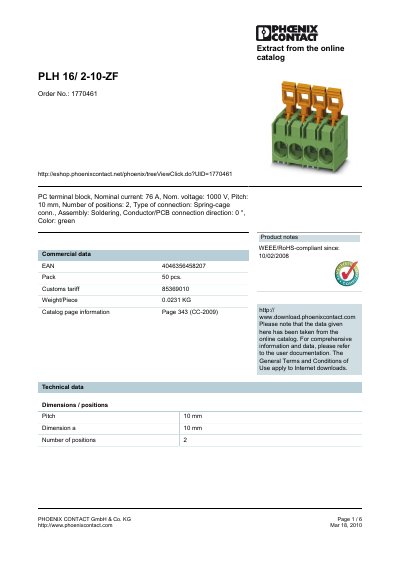

This document describes the features and characteristics of the PC terminal block product PLH 16/ 2-10-ZF from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, type of connection, and assembly method.
The PLH 16/2-10-ZF is a power terminal block from Phoenix Contact designed for 76 A nominal current and 1000 V nominal voltage. It features a 10 mm pitch, two positions, and a spring‑cage connection suitable for soldering.
The document provides detailed technical data such as pin dimensions, insulating material, surge voltage ratings, conductor cross‑section limits, and mechanical drawings. It also includes commercial information, RoHS compliance, and packaging details. This manual is written in Chinese.
| Nominal current | 76 A |
|---|---|
| Nominal voltage | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Pitch | 10 mm |
| Number of positions | 2 |
| Pin dimensions | 1.2 x 1.2 mm |
| Hole diameter | 1.6 mm |
| Insulating material | Group I |
| Inflammability class | UL 94 V0 |
| Stripping length | 18 mm |
| Conductor cross‑section solid min | 0.75 mm² |
| Conductor cross‑section solid max | 16 mm² |
| Weight per piece | 0.0231 KG |
The terminal block is rated for a nominal current of 76 A.
It has a 10 mm pitch and provides two positions.
Pins measure 1.2 × 1.2 mm and the hole diameter is 1.6 mm.
Yes, it has been WEEE/RoHS‑compliant since 10/02/2008.
