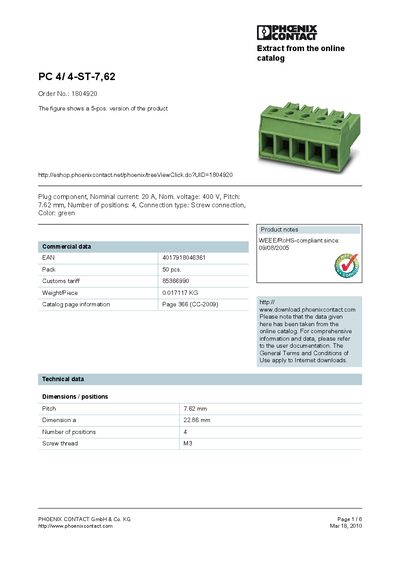

This document describes the PC 4/4-ST-7,62 plug component from PHOENIX CONTACT GmbH & Co. KG. The product has a nominal current of 20A, nominal voltage of 400V, pitch of 7.62mm, 4 positions, screw connection, and green color. The product is WEEE/RoHS compliant.
The PC 4/4-ST-7.62 is a 4‑position screw‑connection terminal block from Phoenix Contact. The handbook provides the nominal current (20 A), nominal voltage (400 V), pitch (7.62 mm), and other key electrical and mechanical data, as well as tightening torque values and compliance information.
Additional sections list compatible accessories, part numbers, and wiring diagrams, and the final page gives contact details for Phoenix Contact Germany.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.017117 kg |
| EAN | 4017918046361 |
| WEEE/RoHS compliance date | 09/08/2005 |
The terminal block is rated for a nominal current of 20 A.
The pitch between contacts is 7.62 mm.
It has four positions.
The recommended tightening torque is 0.5 Nm minimum and 0.6 Nm maximum.
