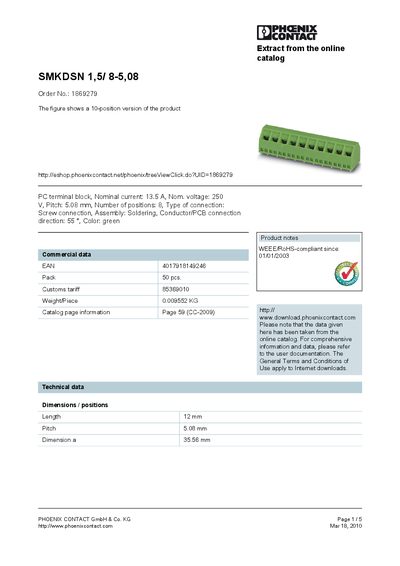

This document describes the features of the PC terminal block product SMKDSN 1,5/ 8-5,08 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, type of connection, assembly, etc.
This leaflet describes the SMKDSN 1,5/8-5,08 terminal block, a 10‑position version with a 5.08 mm pitch and eight positions. It lists the nominal current (13.5 A), nominal voltage (250 V), and other key electrical ratings.
Technical data includes dimensions, weight, material specifications, certifications, and accessory options. Contact and ordering details are provided at the end of the document.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 8 |
| Length | 12 mm |
| Weight per piece | 0.009552 kg |
| EAN | 4017918149246 |
The nominal current rating is 13.5 A.
It has eight positions.
The pitch is 5.08 mm.
The order number is 1869279.
