The PTDA 2,5/5-5,0 is a spring‑cage terminal block designed for 24 A, 320 V applications with a 5 mm pitch and five positions. It supports various conductor cross‑sections and offers UL‑certified insulation and fire‑resistance.

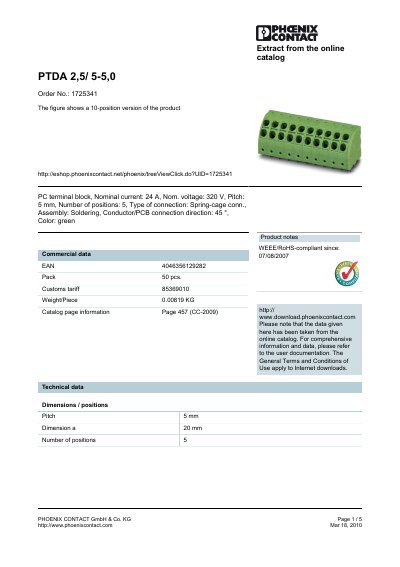

The sheet lists commercial data, detailed technical parameters, certification information, and mechanical drawings. For full installation instructions, refer to the user documentation linked on the Phoenix Contact website.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5 mm |
| Number of positions | 5 |
| Rated surge voltage | 4 kV |
| Insulating material group | I |
| Inflammability class (UL 94) | V0 |
| Stripping length | 10 mm |
| Conductor cross‑section solid min | 0.2 mm² |
| Conductor cross‑section solid max | 2.5 mm² |
The terminal block is rated for a nominal current of 24 A.
The pitch (spacing between pins) is 5 mm.
It has five positions.
The rated surge voltage is 4 kV.
