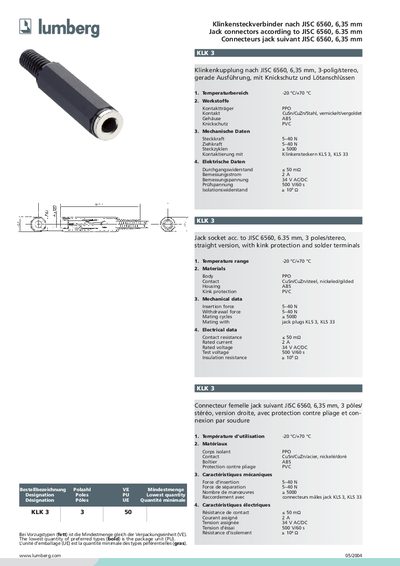

KLK 3 3 50 is a connector from lumberg. This connector meets the JISC 6560 standard, has a size of 6.35 mm, is 3 poles/stereo, and has a straight design with anti-kink protection and solder terminals.
The KLK 3 jack connector complies with JISC 6560 (6.35 mm, 3‑pole stereo) and features a straight design with kink protection and solder terminals. It is built from a PPO insulating body, ABS housing, and PVC kink‑protection, with contacts made of nickel‑plated, gold‑finished CuSn‑ACuZn steel.
Key performance figures include a temperature operating range of –20 °C to +70 °C, insertion and withdrawal forces of 5‑40 N, a minimum of 5 000 mating cycles, contact resistance below 50 mΩ, a rated current of 2 A, a rated voltage of 34 V AC/DC, test voltage of 500 V/60 Hz, and insulation resistance of at least 10⁵ Ω. This manual is written in German.
| Body material | PPO |
|---|---|
| Kink protection material | PVC |
| Insertion force | 5‑40 N |
| Withdrawal force | 5‑40 N |
| Mating cycles | ≥ 5000 |
| Contact resistance | < 50 mΩ |
| Rated current | 2 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V/60 Hz |
| Insulation resistance | ≥ 10⁵ Ω |
The connector is rated for at least 5 000 mating cycles.
The connector is rated for 2 A and 34 V AC/DC.
Contact resistance must be less than 50 mΩ.
