This document describes the features and characteristics of RCA-Stecker products according to JEITA RC-5231 standard, including temperature range, materials, mechanical data, and electrical data.

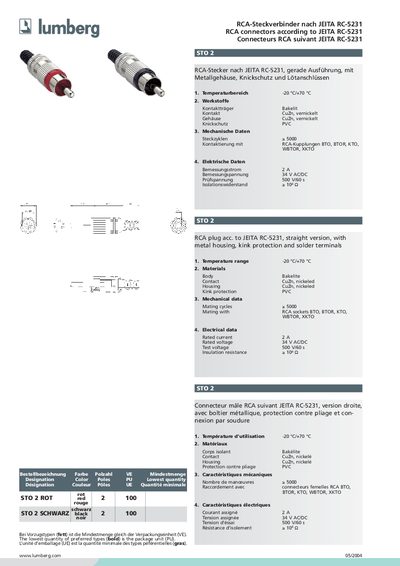

The STO 2 is a straight RCA connector built to JEITA RC-5231 standards. It features a metal housing with PVC kink protection, nickeled CuZn contacts, and a Bakelite body.
Key specifications include a temperature operating range of -20 °C to +70 °C, rated current of 2 A, rated voltage of 34 V AC/DC, 5000 mating cycles, and a test voltage of 500 V for 60 s. This manual is written in German.
| Temperature range | -20 °C / +70 °C |
|---|---|
| Rated current | 2 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V / 60 s |
| Insulation resistance | 10⁸ Ω |
| Contact material | CuZn, nickeled |
| Housing material | CuZn, nickeled |
| Kink protection material | PVC |
| Body material | Bakelite |
It can be used from –20 °C up to +70 °C.
The connector is rated for 2 A and 34 V AC/DC.
A test voltage of 500 V for 60 seconds is used.
