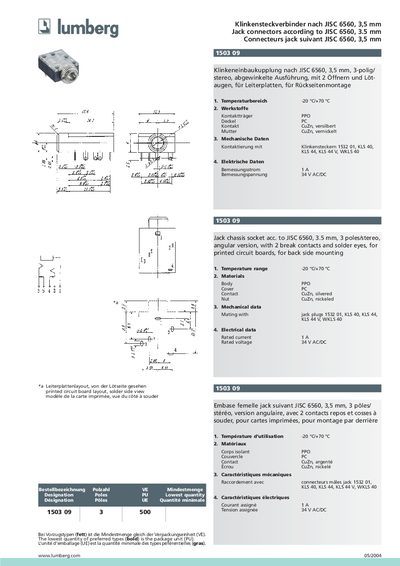

This document is about Klinkensteckverbinder nach JISC 6560, 3,5 mm, which mainly introduces the features and characteristics of the product, including temperature range, materials, mechanical data, electrical data, etc.
The JISC 6560 is a 3‑pole stereo jack connector designed for back‑side mounting on printed circuit boards. It features a PPO insulating body, PC cover, and silver‑plated CuZn contacts with a nickeled CuZn nut.
Key specifications include an operating temperature range of –20 °C to 70 °C, a rated current of 1 A, and a rated voltage of 34 V AC/DC. The connector mates with standard jack plugs such as 1532‑01, KLS 40, KLS 44, and related variants. This manual is written in German.
| Operating temperature range | -20 °C to 70 °C |
|---|---|
| Rated current | 1 A |
| Rated voltage | 34 V AC/DC |
| Body material | PPO |
| Cover material | PC |
| Contact material | CuZn, silvered |
| Nut material | CuZn, nickeled |
It can be used from –20 °C up to 70 °C.
The connector is rated for 1 A current and 34 V AC/DC voltage.
The body is made of PPO and the cover is made of PC.
It mates with plugs 1532‑01, KLS 40, KLS 44, and related variants.
