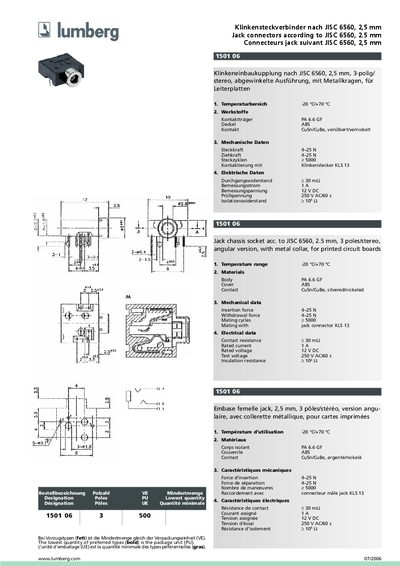

This document provides detailed information on a 3-pole/stereo jack connector that meets the JISC 6560 standard. The jack connector has a metal collar and is suitable for printed circuit boards. The document also provides information on the temperature range, materials, mechanical data, and electrical data of the jack connector.
The JISC 6560 2.5 mm jack connector is a 3‑pole stereo socket designed for printed circuit boards. It features a metal collar, PA 6.6 GF body and an ABS cover, with contacts made of CuSn/CuBe that are silvered or nickel‑plated.
Key specifications include a temperature operating range of –20 °C to +70 °C, insertion and withdrawal forces of 4–25 N, up to 2 500 mating cycles, contact resistance ≤ 30 mΩ, a rated current of 1 A, a rated voltage of 12 V DC, and a test voltage of 250 V AC at 60 Hz. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | PA 6.6 GF |
| Cover material | ABS |
| Contact material | CuSn/CuBe, silvered/nickel plated |
| Insertion force | 4–25 N |
| Withdrawal force | 4–25 N |
| Mating cycles | ≈ 2500 |
| Contact resistance | ≤ 30 mΩ |
| Rated current | 1 A |
| Rated voltage | 12 V DC |
| Test voltage | 250 V AC, 60 Hz |
| Insulation resistance | 10 MΩ |
The connector operates from –20 °C to +70 °C.
It is rated for 1 A current and 12 V DC voltage.
The connector is specified for about 2 500 mating cycles.
